Equipment & Specs

SEQ Drilling dry material transport truck

CME.550X

The CME-550X is our most used drilling system. It is a compact hydraulic drilling system that has a low center of gravity and high ground clearance. This is a great multi-purpose rig with a retract force of 28,275 lbs and a pulldown force of 18,650 lbs.

  • Mast Up: 27' 5"
  • Mast Down: 9' 4"
  • Height: 8'
  • Length: 22'
  • Width: 8'
  • 18.4-16.1 Tires
  • 115" wheelbase
  • (3) winches
  • Automatic Hammer
  • Weight: 21,000 Lbs.
  • Fuel: Diesel
  • Angle package drill
  • (3) winches
  • Hydraulic brakes
CME.550X Spec Sheet
SEQ Drilling dry material transport truck

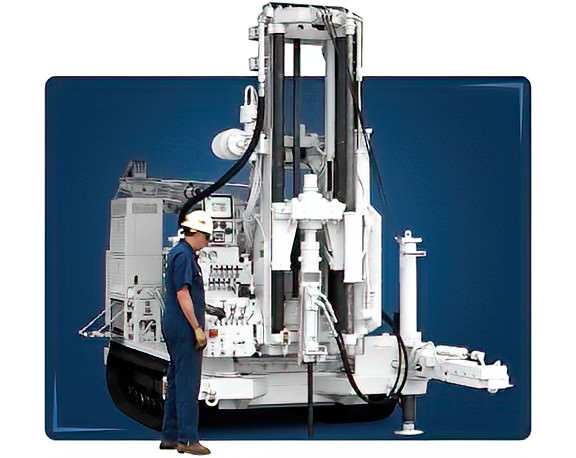

CME.55LC

The CME-55LC is our most compact hydraulic drilling system that uses a steel core reinforced rubber track system that gives it a 0° turn radius. This rig has a hydraulic front winch with a 15,000 pound capacity. The CME-55LC has a retract force of 27,615 lbs and a pulldown force of 19,750 lbs.

  • Mast Up: 24'
  • Mast Down: 7' 1"
  • Height: 8'
  • Length: 13' 2"'
  • Width: 7' 3"
  • 12 inch wide tracks
  • Remote Controlled
  • Weight: 15,000 Lbs.
  • Fuel: Diesel
  • Angle package drill
CME.55LC Spec Sheet
SEQ Drilling dry material transport truck

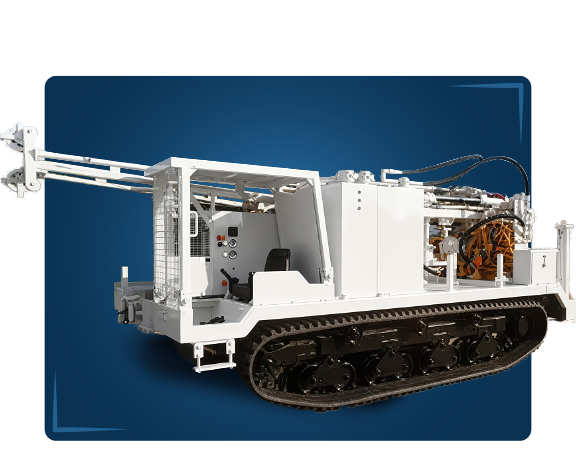

CME.850XR

The CME-850XR is a rough-terrain hydraulic drilling system on full steel-core reinforced rubber tracks with a 0° turn radius and only 3.9 psi ground bearing pressure. This rig has a hydraulic front winch with a 20,000 pound capacity. The CME-850XR has a retract force of 28,275 lbs and a pulldown force of 18,650 lbs.

  • Mast Up: 26'
  • Mast Down: 8' 7"
  • Height: 8' 7"
  • Length: 23' 7"
  • Width: 8' 5"
  • 27 inch wide tracks
  • Remote Controlled
  • Weight: 27,000 Lbs.
  • Fuel: Diesel
  • Angle package drill
CME.55LC Spec Sheet
